RFID Reader and Antenna

The Reader and Antenna captures data and communicate with RFID Tags. When any RFID Tags pass through the reader, it will read the tag’s data through the antenna, sending the data back to the system

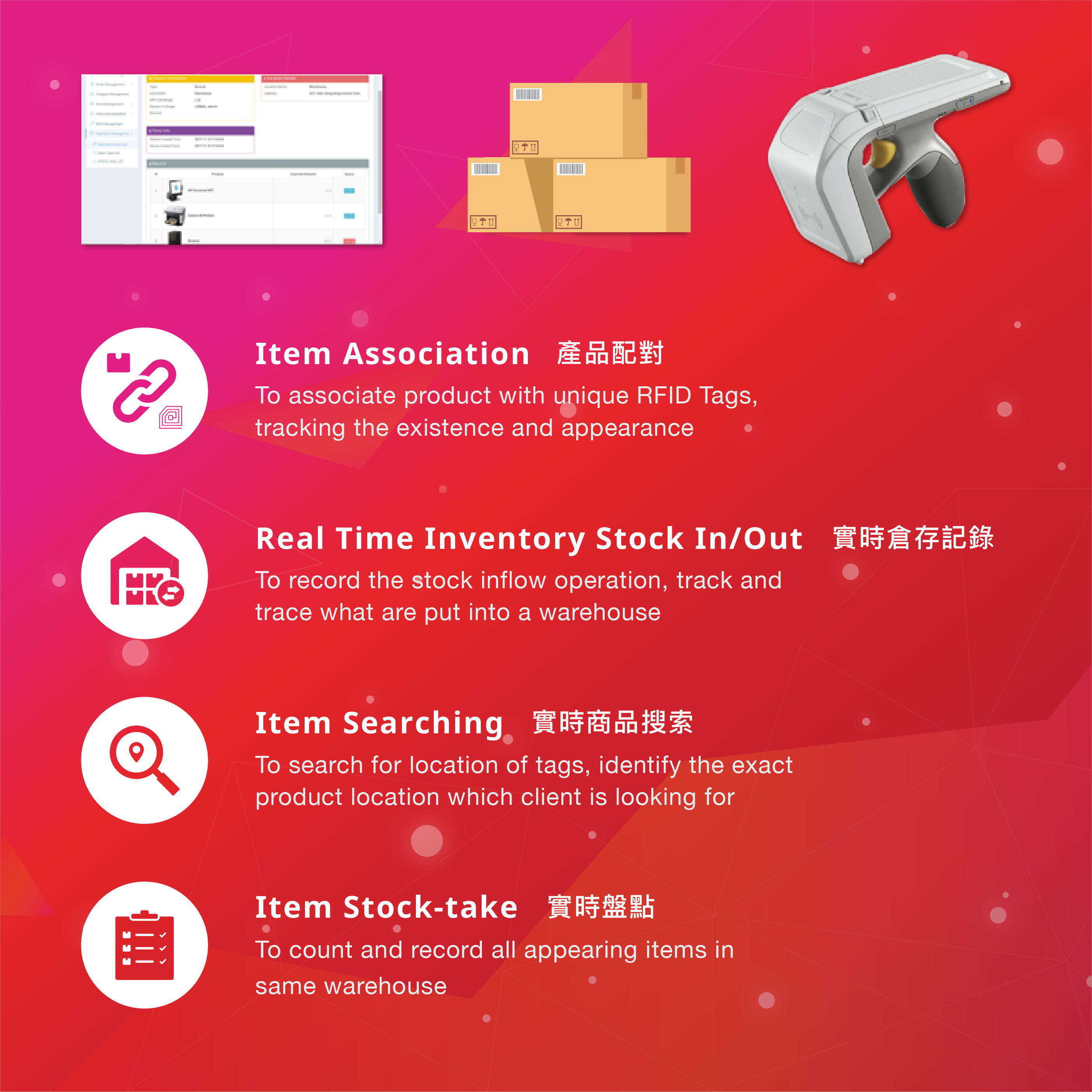

RFID Handheld Reader

The Handheld serves mainly three functions: Stock-Take, Item Search and Item Association. It collects data from the tag and support sidetrack operations.

RFID Tag

Every Tag has a unique ID number to identify the goods. Users can edit the information of the tag according to their needs, for example, product name and quantity etc.

End User Computer

The computer will be installed within the warehouse to support the system operations. Allowing users to access their admin portal for data management

SPEEDWAY® Revolution - Expanding Options, Reducing Costs

Native support for Sierra Wireless AirLink PinPoint XT and AirLink Raven XT cellular modems opens up new deployment and application models by enabling GSM or CDMA connectivity to the Internet through your preferred cellular carrier. Even with PoE operation, Speedway Revolution can deliver a full 30 dBm of transmit power and the highest read performance.

• 2 and 4 antenna port configurations
• Power over Ethernet (PoE) and cellular modem connectivity
• Industry’s best sensitivity
• EPCglobal-compliant design

Autopilot Senses, Configures, Adapts - 24/7

Autoset continuously optimizes the reader’s configuration for the best, most reliable performance. The Speedway Revolution senses levels of RF noise and interference, automatically selecting the appropriate settings.
Low duty cycle reduces RF interference, power consumption, and energy costs.The Speedway Revolution only transmits when tags are in the field, helping to clear the air of unnecessary RF noise.
Dynamic antenna switching improves throughput and helps the reader work more efficiently. Speedway Revolution senses where tags are in the field and automatically focuses more time on the antennas with the largest tag populations in view.

Speedway® xPortal - Integrated Portal Reader

It incorporates the industry-leading Speedway Revolution reader and Impinj’s Dual-Linear Phased Array (DLPA) antenna technology, yielding the industry’s smallest, most flexible, and cost-effective RFID portal solution.
Designed for retail, office, hospital, and other indoor environments, this reader is ideal for monitoring tagged items, pallets, equipment, files, or people passing through doorways, hallways, or other zonal coverage areas. Impinj’s Speedway® xPortal™solves the size and mounting limitations of traditional portals with a light-weight, low-profile unit that is as attractive as it is effective.

Impinj’s Monza® RFID 4 tag chips

The Monza 4 family of tag chips delivers unique privacy, performance, and memory benefits that address even the most challenging of RFID applications. Providing superior sensitivity combined with excellent interference rejection, support for omni-directional antennas , innovative privacy features, and expanded memory options, Monza 4 tag chips set a new standard in RFID.

Impinj’s Monza® 5 RFID tag chips

Impinj’s new Monza® 5 tag chips enable unmatched read reliability and encoding performance to yield optimal RFID business results with low applied tag cost.

• up to 128 (bits) EPC Memory
• Serialized TID
• Monza Self-Serialization

With unique features that support fast authentication and facilitate the reading of difficult-to-reach tags, Monza 5 tag chips are the ideal solution for item-level tagging of apparel, electronics, cosmetics, and jewelry,or any other application that requires high-volume, high-performance, serial-numbered tags.

High performance, low cost antenna solution

The Brickyard reader antenna works well for tagged items on a variety of package types, making it an ideal choice for point of sale applications.

• Range: short(30-45 cm)
• Dimensions: 29.5 cm D x 6 cm
• Support Europe(865–868 MHz)
• Support USA(902–928 MHz)

Optimized for reading item-level tags packed in cases

The Guardwall reader antenna provides a tightly controlled read zone and intense RF field, critical to penetrating deep into packed cases traveling on conveyors or packing lines.

• Range: long (3 m) alone,shorter (variable) when used in pair
• Dimensions: 70 x 40 x 10 cm
• Support Europe(865–868 MHz)

• Support USA(902–928 MHz)

Near-field design penetrates liquids and most metals

With its diminutive size, the MatchBox reader antenna is ideally suited for embedded applications that require unobtrusive RFID capability with shortrange, well-defined read zones.

• Range: very short(<5 cm)
• Dimensions: 73 mm x 33 mm x 12 mm
• Support Broadband(860–960 MHz)

Broadband design to enable world-wide operation

The Mini-Guardrail monostatic antenna, specifically designed for demanding item-level performance, operates very effectively at 7.5 cm or less, with high reliability and a constrained read zone.

• Range: very short (7 cm)
• Dimensions: 13 x 7 x 2 cm
• Support Broadband(860–960 MHz)

Strong far-field performance

The threshold antenna initially designed for boundary crossing applications, the Threshold far field antenna, with its planar form factor, provides a consistent and continuous read zone when linearly distributed head-to-tail.

• Range: long(4 x 3 m)
• Dimensions: 46 x 9 x 2 cm
• Support Europe(865–868 MHz)
• Support USA(902–928 MHz)
